GE-V 1 to 4 Variable Stages Module

Catégories: Controller and expansion modules, Controllers and expansion modules, Controllers and expansion modules, Controllers and expansion modules, Poultry, GENIUS Modules, Swine, GENIUS Modules, GENIUS Modules, GENIUS Modules, Dairy, Horticultural, Lighting, Lighting, Lighting, Lighting

As much for the farms of its clients as for the agricultural sector in general, Monitrol offers modules geared towards better management of lights, variable speed and variable stage air intakes, movement detectors, pens and feed and consumption levels. The vast majority of our modules also make it easier and safer to remotely manage your production thanks to the FarmQuest platform.

Modules that ensure all the tasks of your farm:

  • Variable Heating
  • Egg belt
  • Egg conveyor
  • Egg elevator
  • Air Inlet
  • Variable lights
  • Heating mat
  • Fan
  • Static Pressure Fan
  • Variable Recirculation Fan

GE-V series modules to be used with a GENIUS main controller to add variable stages.


Variable Stages Module

Clear

Technical specifications

  • 240 V

Monitrol conceives modules aiming at a better management of the lights, the air inlets, the motion detectors, the niches and the consumption levels for the farm of its customers as well as for the agricultural sector. The vast majority of our modules facilitate effective and reassuring remote management through the FarmQuest platform.

Discover the GE-V Series :

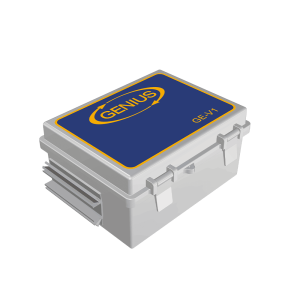

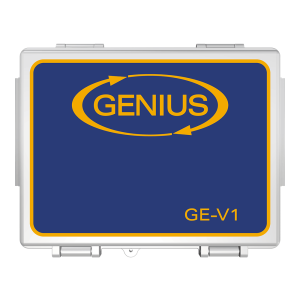

GE-V1 – Module 1 variable stage, pulse communication

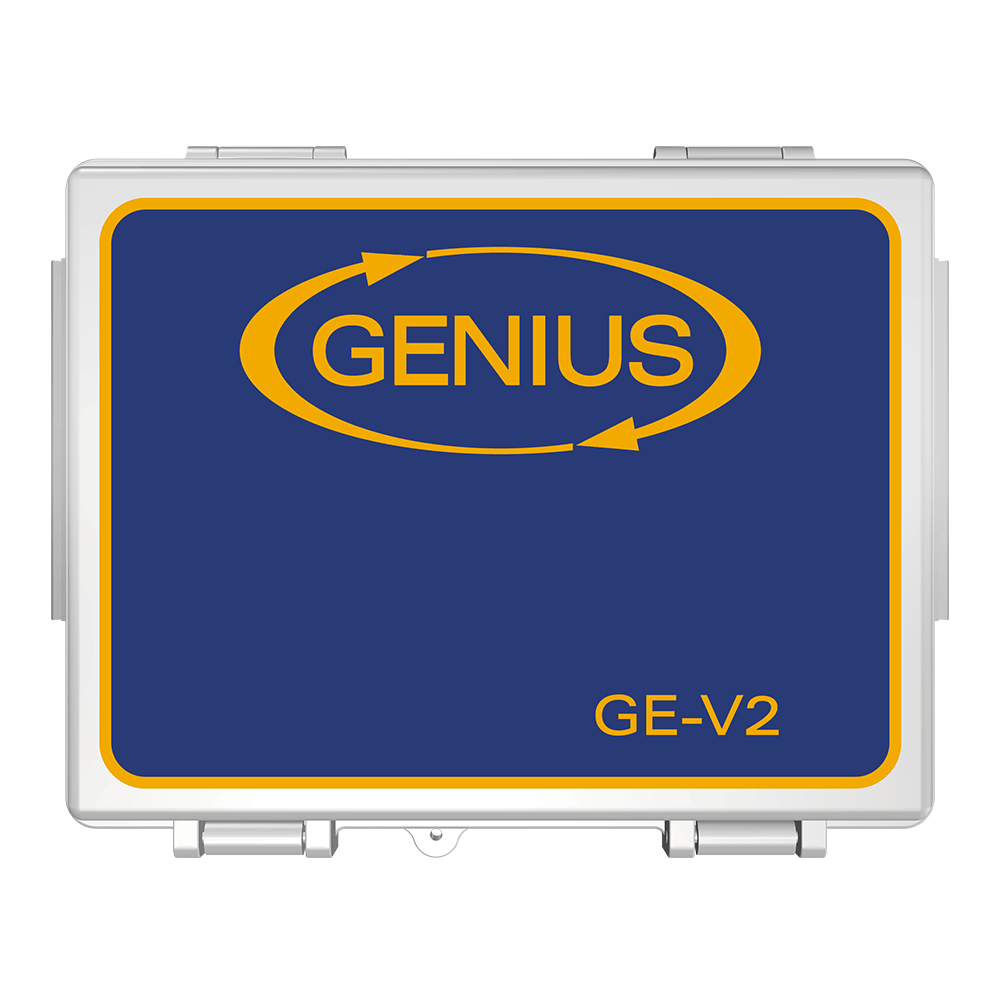

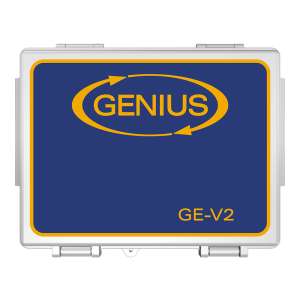

GE-V2 – Module 2 variable stage, pulse communication

  • VARIABLE OUTPUT
    • Fuse for stages 1 and 2: 15 A @ 250 VAC
    • Maximum load for stage 1 and 2: 10 A @ 115/230 VAC

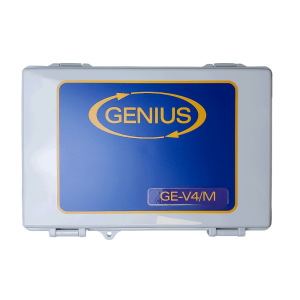

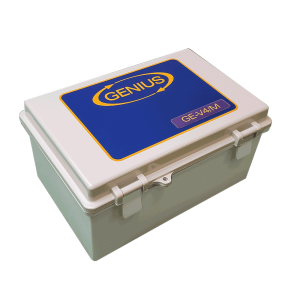

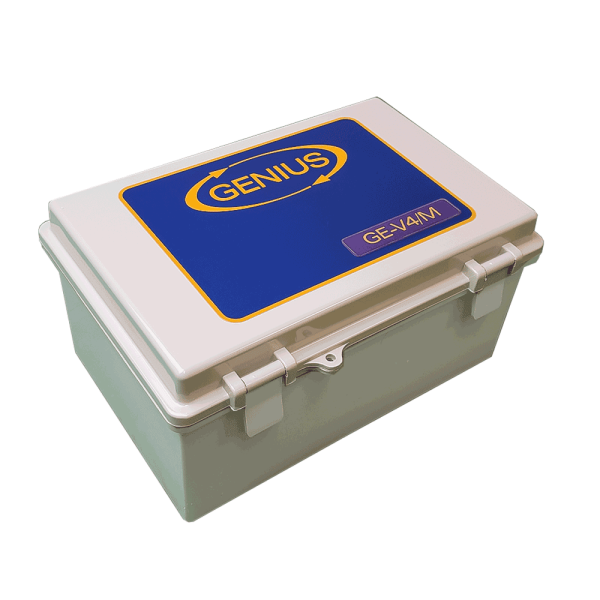

GE-V4/M – 4 output 0-10V module with MGCB communication port (2-wire cable)

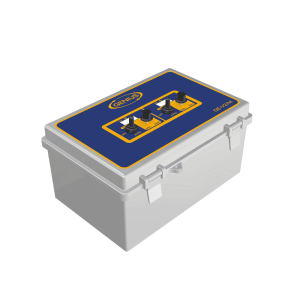

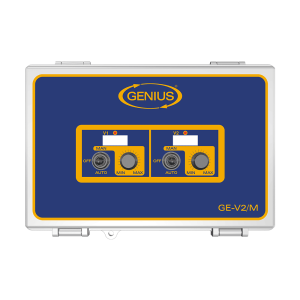

GE-V2/MS – 2 output 0-10V module with MGCB communication port (2 wire cable) and switches

GE-V4/MS – 4 output 0-10V module with MGCB communication port (2-wire cable) and switches

  • POWER SUPPLY
    • Operating voltage range: 115VAC/230VAC
    • Maximum power consumption: 125 mA 0-10V OUTPUTS
    • Output signal: 0-10Volts
    • Maximum load: 100mA
  • RELAYS
    • Relay type: Normally open
    • Maximum load: 15A 250VAC

GE-V2/S – 2 variable output module with MGCB communication port (2-wire cable) and switches

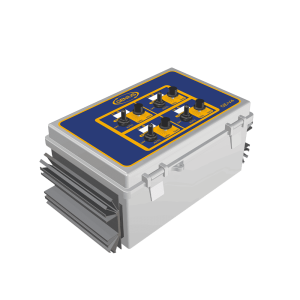

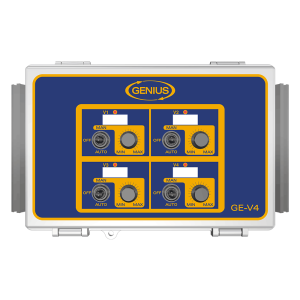

GE-V4/S – 4 variable output module with MGCB communication port (2-wire cable) and switches

  • POWER SUPPLY
    • Operating voltage range: 115VAC/230VAC
    • Maximum power consumption: 125 mA

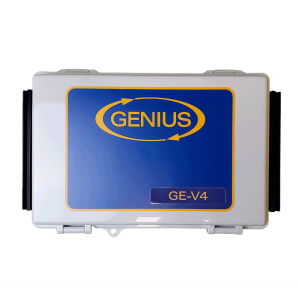

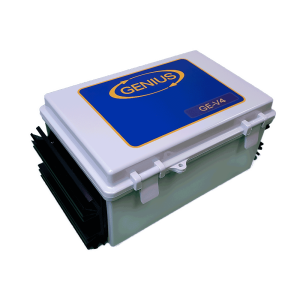

GE-V4 – 4 variable output module with MGCB communication port (2-wire cable) without switch

  • POWER SUPPLY
    • Operating voltage range: 115VAC/230VAC
    • Maximum power consumption: 125 mA
  • VARIABLE OUTPUT
    • Fuse for stages 1 and 2: 15 A @ 250 VAC
    • Maximum load for stage 1 and 2: 10 A @ 115/230 VAC

Housing and Storage Information

  • Storage temperature: -20°C to 55°C (-4°F to 131°F)
  • Operating temperature: 0°C to 50°C (32°F to 122°F)
  • Humidity: 90% maximum without condensation
  • Weight: 2 kg (4.4lb)
  • Dimensions: 28.5cm x 19.5 cm x 16 cm (11″ x 7 3/4″ x 61/4″)
  • Standards: CSA (NRTL/C)
  • Protection Index: IP 66
  • 2 year warranty
